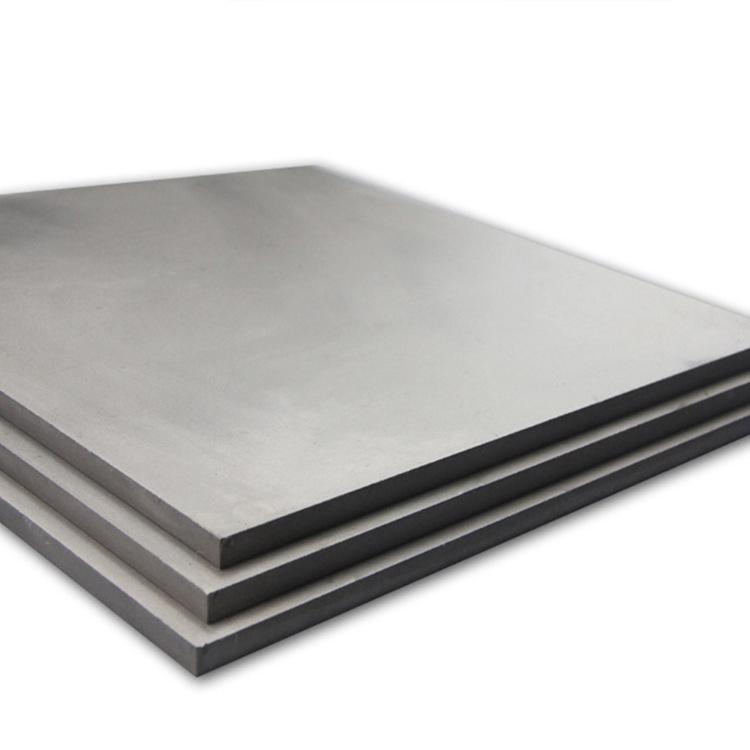

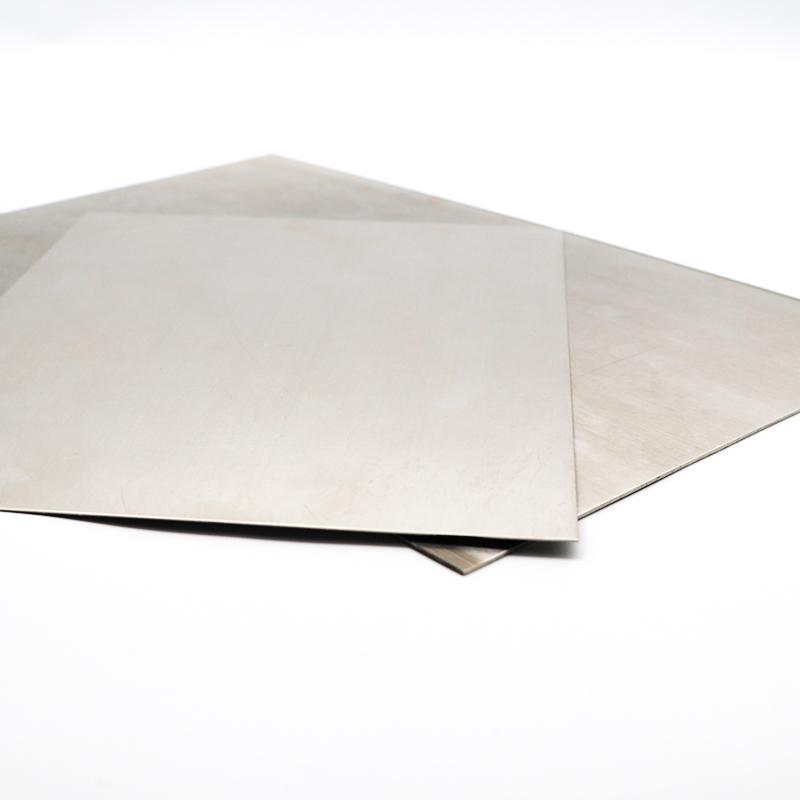

Product Description
L605 alloy plates are highly valued in the aerospace industry due to their excellent high-temperature performance, corrosion resistance, and mechanical properties. Here are some specific details regarding their applications in aerospace:
1. Gas Turbine Engines
Turbine Blades: L605 plates are used to manufacture turbine blades, which must withstand extreme temperatures and mechanical stress. The alloy's ability to maintain strength at high temperatures makes it ideal for this application.
Combustion Chambers: The alloy is used in combustion chambers where high temperatures and corrosive combustion gases are present. L605’s oxidation resistance is crucial for prolonging the life of these components.
Afterburners: L605 plates are utilized in afterburners of jet engines, where they face intense heat and aggressive environments during high-speed flight.
2. Exhaust Systems
Exhaust Ducts and Components: L605 is used in the manufacture of exhaust ducts, which must endure high-temperature exhaust gases. The alloy’s resistance to thermal fatigue and oxidation helps maintain structural integrity.
Heat Shields: The alloy is applied in heat shields that protect other components from excessive heat generated during operation.
3. Engine Casings and Supports
Structural Components: L605 plates can be used to produce structural elements in jet engines, where strength and lightweight characteristics are essential. Its high strength-to-weight ratio contributes to overall engine efficiency.
Mounting Brackets and Supports: Used in various mounting brackets and supports that require durability and resistance to high temperatures.
4. Aerospace Fasteners and Seals
High-Performance Fasteners: L605 is suitable for fasteners used in high-temperature aerospace applications, where conventional materials may fail.
Sealing Components: The alloy can be used in seals that must withstand extreme conditions and provide reliable performance.
5. Spacecraft Components
Heat Exchangers: L605 plates are utilized in heat exchangers for spacecraft that operate in harsh thermal environments.
Radiators and Thermal Shields: The alloy’s thermal properties make it suitable for use in radiators and thermal shields that protect sensitive components from temperature extremes in space.
6. Manufacturing and Processing
Additive Manufacturing: L605 is increasingly being used in additive manufacturing techniques for creating complex geometries in aerospace components, allowing for lightweight and efficient designs.
Key Properties for Aerospace Applications:
High-Temperature Strength: Maintains mechanical integrity at temperatures up to 1800°F (980°C).
Corrosion Resistance: Excellent resistance to oxidation and corrosion in high-temperature environments, extending component life.
Fabricability: Can be easily machined, welded, and formed into complex shapes, which is essential for the varied geometries found in aerospace components.
L605 alloy plates are integral to aerospace applications, particularly in gas turbine engines, exhaust systems, and other high-performance components that must operate reliably in extreme conditions. Their high-temperature capabilities, corrosion resistance, and versatility make them a preferred material choice in the aerospace sector.
Chemical Composition For L605 Plate
| Carbon | 0.05-0.15 |
| Manganese | 1.0-2.0 |
| Silicon | 0.40 max. |
| Chromium | 19.0-21.0 |
| Nickel | 9.0-11.0 |
| Tungsten | 14.0-16.0 |
| Phosphorus | 0.040 max. |
| Sulfur | 0.030 max. |
| Iron | 3.0 max. |
| Cobalt | Balance* |
Physical Constants for L605 Plate
| Density | lb/in3 | 0.335 |
| g/cm3 | 9.27 | |
| Melting Range | °F | 2426-2570 |
| °C | 1330-1410 | |
| Specific Heat | at 70°F, Btu/lb°F | 0.092 |
| at 21 °C, J/kg°C | 385 | |
| Permeability at 200 oersted | 1.002 | |
| Thermal Conductivity | Btu•in/ft2•h•°F | 65 |
| W/m•°C | 9.4 | |
| Electrical Resistivity | (75°F), ohm•circ mil/ft | 533.2 |
| (24°C), microohm-m | 0.886 | |
Properties For L605 Plate
25) is a cobalt-based superalloy known for its excellent mechanical properties and high-temperature capabilities. Here are the key properties of Alloy L605:1. High-Temperature Strength
Retains high strength and good oxidation resistance at temperatures up to 1800°F (980°C).
Useful in high-stress applications where sustained high temperatures are a factor.
2. Oxidation and Corrosion Resistance
Excellent oxidation resistance in air up to 2000°F (1093°C).
Resists corrosion in various environments, including oxidizing and reducing atmospheres, as well as saltwater.
3. Wear and Galling Resistance
Exhibits good resistance to wear and galling, which is useful in parts subjected to friction at elevated temperatures.
4. Fabricability
Although a strong material, Alloy L605 is still fabricable through various methods, including forming, welding, and machining.
5. Creep and Fatigue Resistance
High resistance to creep and fatigue at elevated temperatures, making it ideal for components that experience thermal cycling and mechanical stress over time.
6. Room Temperature Ductility
Shows good ductility at room temperature, although prolonged exposure to intermediate temperatures can reduce this property (common in superalloys).
7. Chemical Composition
Primary elements include cobalt (Co), chromium (Cr), tungsten (W), nickel (Ni), and a small percentage of iron (Fe).
The alloy contains around 10-20% tungsten, which contributes to its strength and corrosion resistance.
8. Applications
Frequently used in gas turbine engine components, combustion chambers, afterburners, and other high-temperature applications in aerospace and power generation industries.
These properties make Alloy L605 highly suitable for high-performance applications in extreme environments, where both heat and mechanical stress are present.
L605 Plate is a nickel-based high-temperature resistant alloy known for its excellent mechanical properties, corrosion resistance, and stability at elevated temperatures. It is primarily used in industries where materials are exposed to extreme heat, pressure, and corrosive environments. Common application areas for GH5605 include:
Aerospace industry: Used in turbine blades, combustion chambers, and other components of aircraft engines and gas turbines that require high strength and resistance to oxidation at high temperatures.
Power generation: Employed in the manufacturing of parts for gas turbines and nuclear reactors due to its ability to maintain strength under thermal stress and resist oxidation.
Petrochemical industry: Used in high-temperature chemical processing equipment, such as reactors and heat exchangers, due to its corrosion resistance in aggressive environments.
Marine applications: Applied in marine engines and offshore platforms that require materials with high resistance to saltwater corrosion and heat.
Automotive industry: Used in the production of turbochargers and exhaust valves for high-performance engines.
GH5605's versatility in high-temperature environments makes it a preferred choice for critical components in these industries.
